Project · Aviation
Al-Alamein International Airport — Fuel Depot
A complete JET-A1 fuel depot for Al-Alamein International Airport — three JET-A1 tanks totalling 1.2 million litres, a 14″ hydrant of two 1,850 m runs and a full firefighting, control and monitoring scope, supporting around 120,000 m³ of fuelling a year.
- Location
- Al-Alamein International Airport, Egypt
- Sector
- Aviation
- Status
- Delivered 2023–2025
- Location
- Al-Alamein, Egypt
- Delivered
- 2023–2025
- JET-A1 tanks
- 3× · 1.2 million litres
- Hydrant
- 14″ · 2×1,850 m
- Firewater tank
- 1,200 m³
- Throughput
- ~120,000 m³/yr
Overview
The brief, and the build
Al-Alamein International Airport is being built to rank among the leading airports of the Middle East and Africa. Its new fuel depot had to match that ambition — a complete JET-A1 facility engineered to international standards for aviation fuelling, safety and quality.
Between 2023 and 2025 we delivered the depot end to end: three JET-A1 tanks totalling 1.2 million litres with overfill protection, a ground-fuelling system, reception and loading stations, pumping and flow metering, filtration and water separation, a 14″ hydrant of two 1,850 m runs, a 1,200 m³ firewater tank, cathodic protection, emergency shut-down, leak detection, CCTV and a water-and-gas firefighting system — all under automatic control.
The depot supports around 10,000 m³ of fuelling a month — roughly 120,000 m³ a year — clean, bright, dry and fully monitored, ready for the airport's growth.
Scope of work
What We Delivered
- 013× JET-A1 storage tanks — 1.2 million litres, with overfill protection
- 02Ground-fuelling system, reception and loading stations

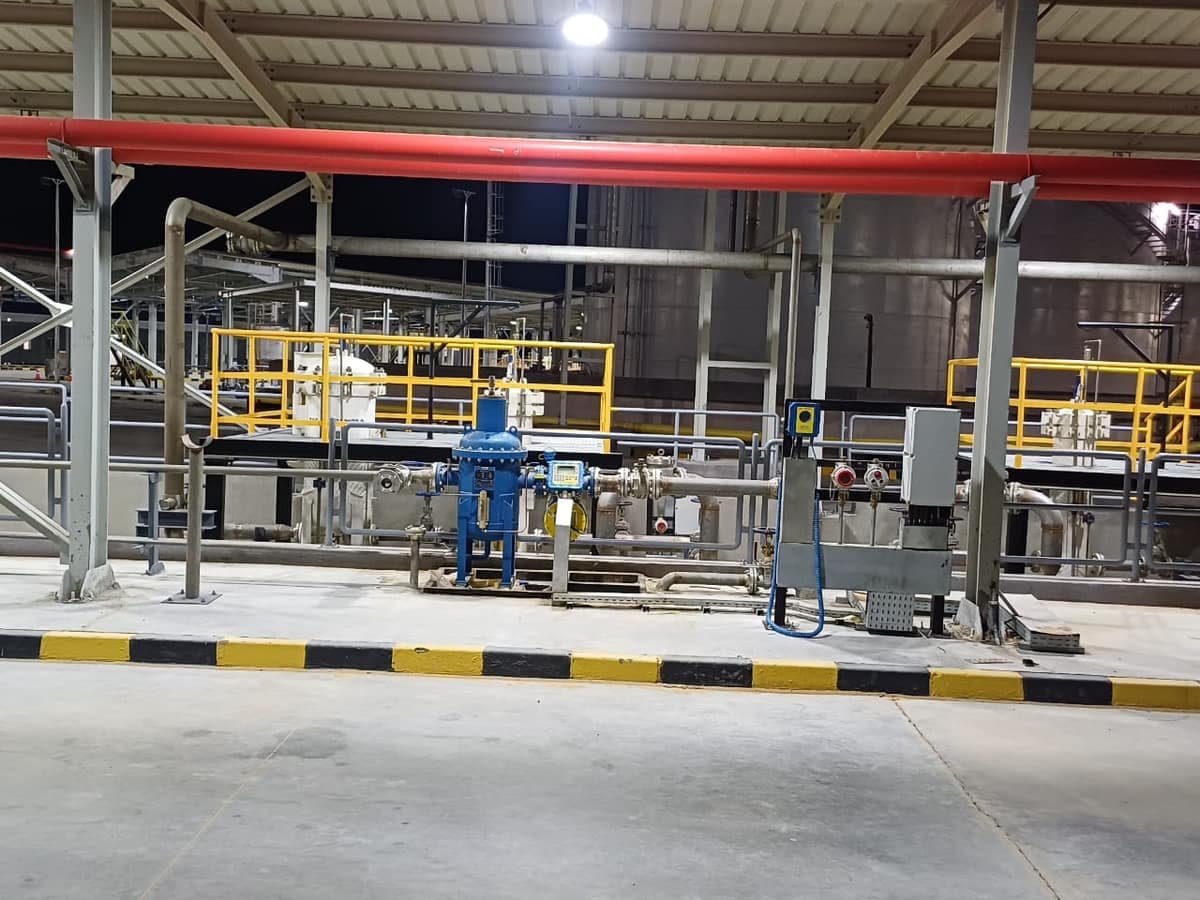

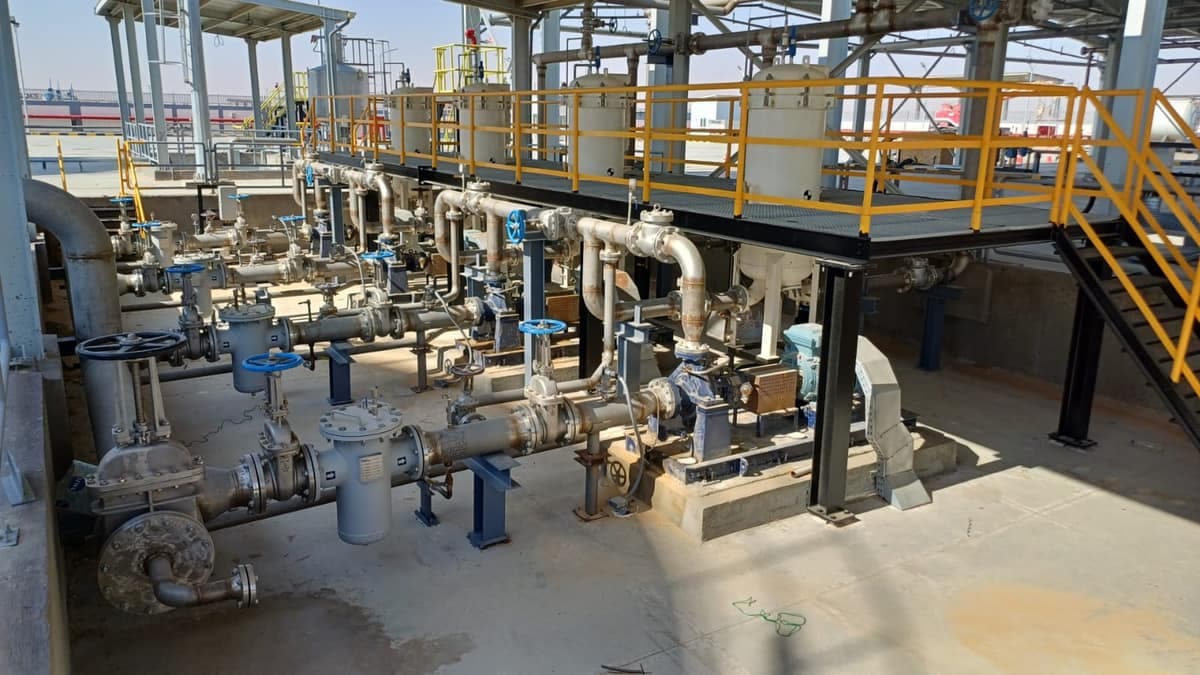

- 03JET-A1 pumping stations and flow metering

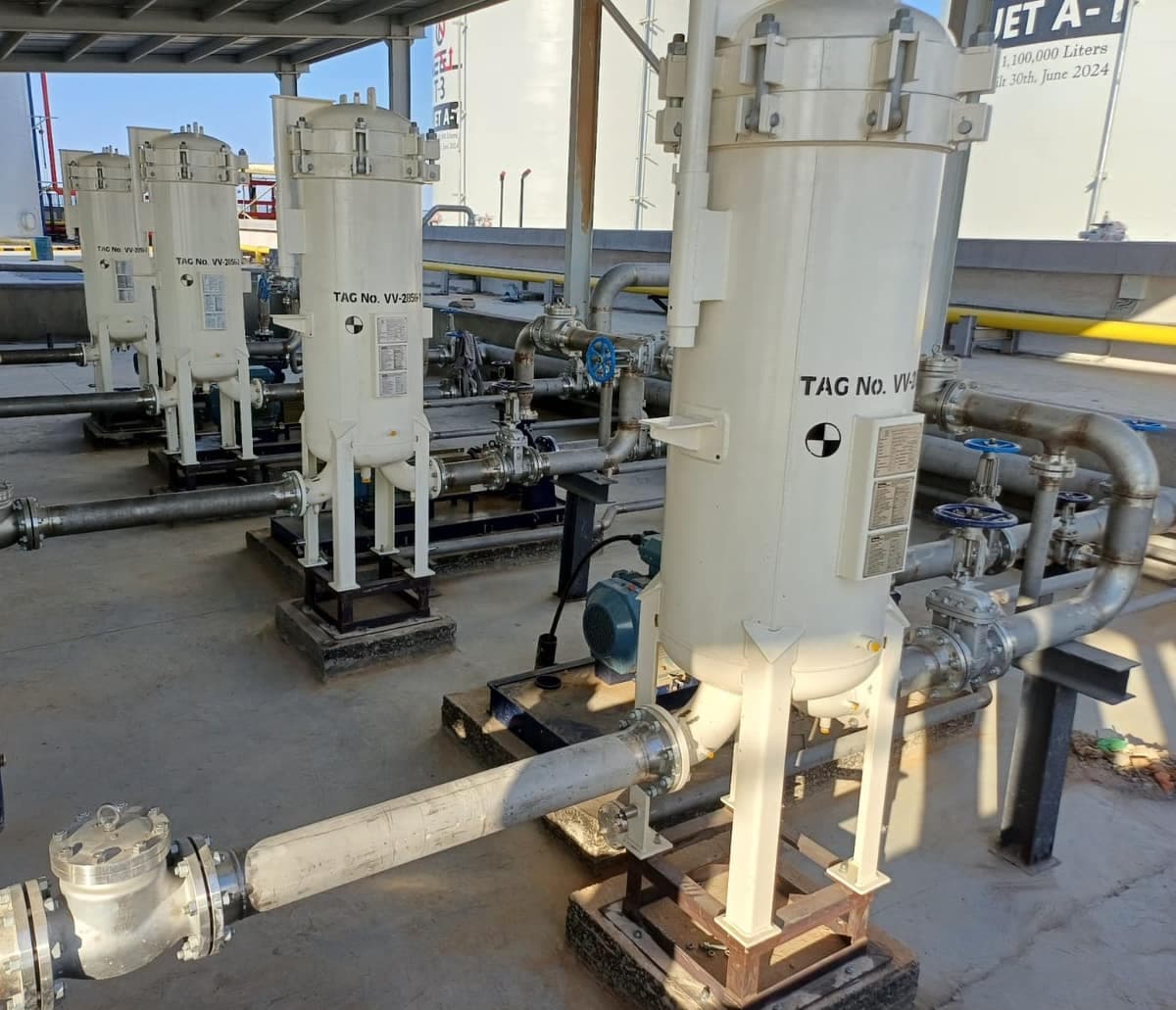

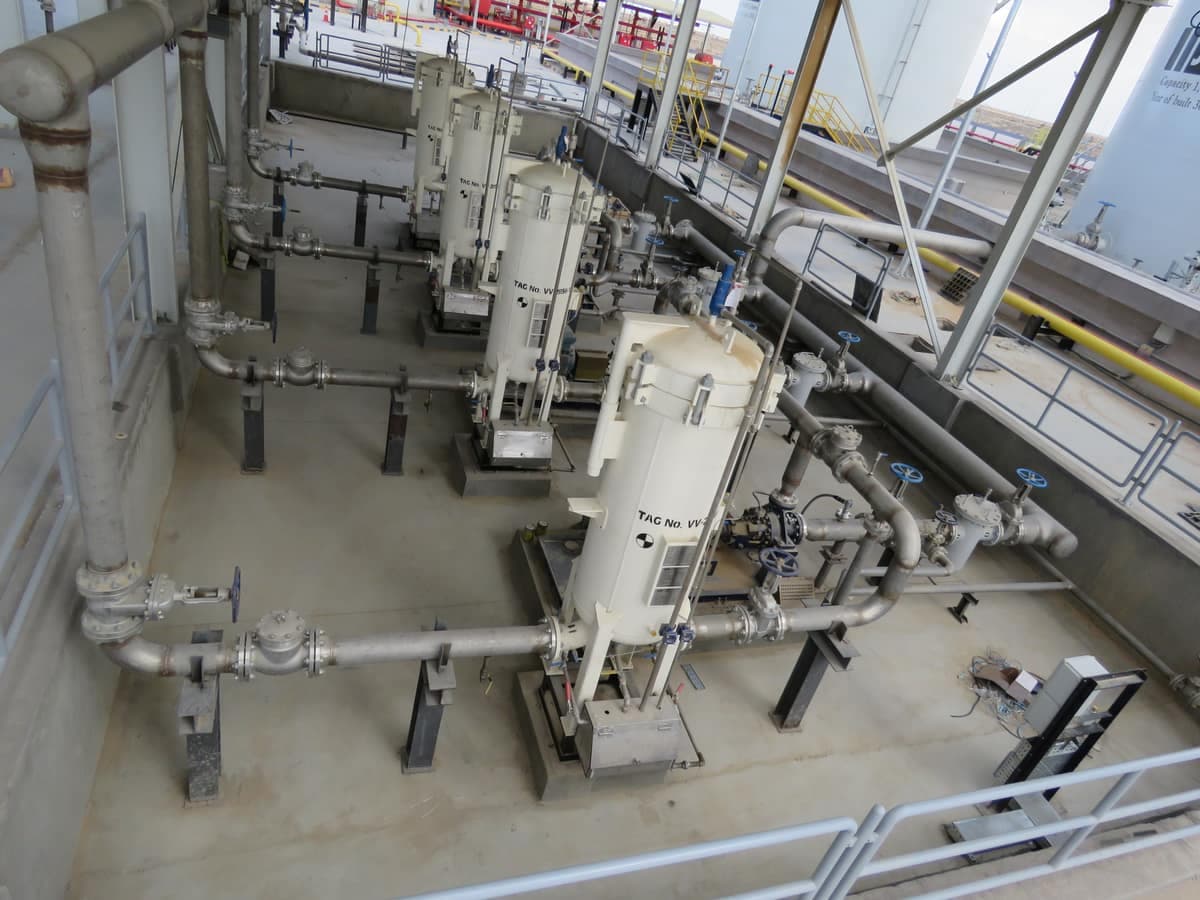

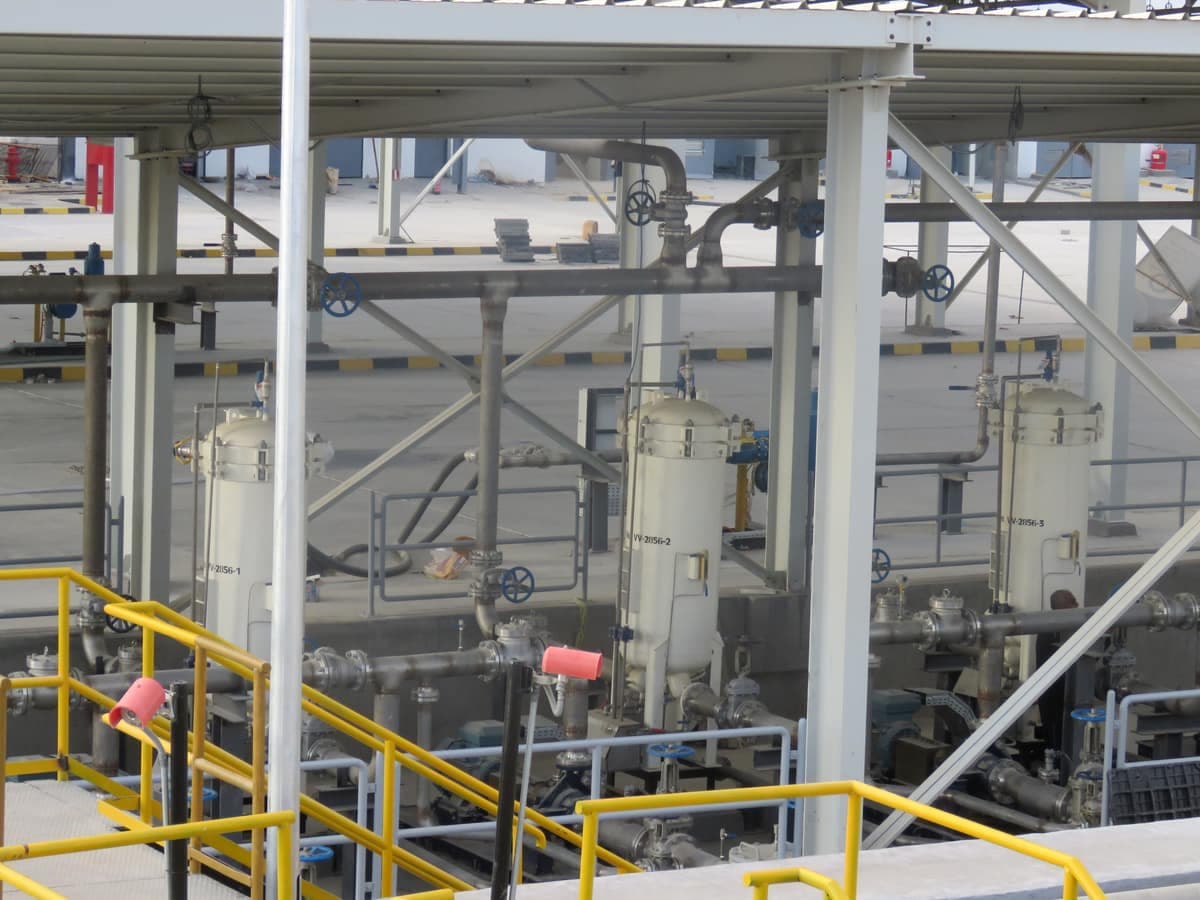

- 04Filtration and water separation
- 05Hydrant 14″ — two runs of 1,850 m
- 06Firewater tank 1,200 m³ and water-and-gas firefighting
- 07Cathodic protection, emergency shut-down and leak detection
- 08CCTV, automatic tank gauging and automatic control
Gallery
On Site
Hover or tap a frame to open it.
